About Our Services and Products

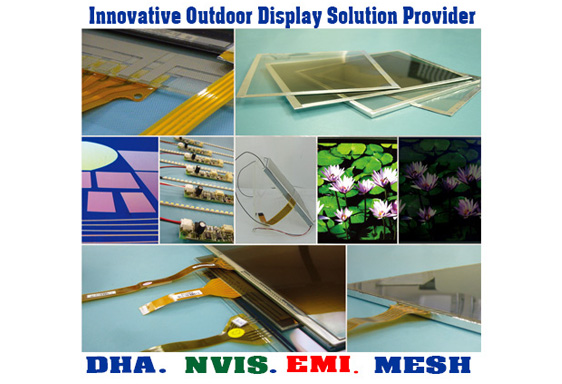

RSP's Display Head Assemblies (DHAs) are designed and integrated with the following technologies and functionalities per each customer's requests and needs. These include high-bright LCDs, high-bright LCDs with local dimming miniLEDs, LCDs with night vision, NVIS, compatible backlights, rugged touch panel with glass surface, EMI shielding windows, and heaters. As an EMI Shielding and NVIS LCD specialist, RayShine integrates night vision compatible displays and EMI protection into one rugged display module for avionics, marine, military and outdoor applications.

High Bright LED Backlights

Edge or Panel LED Backlights
Brightness Up To 10,000+ Nits
No Extra Heat at High Brightness
May Be Local Dimming Controlled
Enhanced Contrast Ratio
sunlight Readable and Power Saving and Prolonged Lift Time

NVIS Filter for LED and Display

Custom IR Cut Coating
Sharp Wavelength Cutoff
Minimum Color Distortion
MIL-STD-3009 Type I or II Class B NVIS, Night Vision Compatible
Applicable to LCD Size up to 64”
Competitive Price

Rugged Touch Panel

Resistive/Capacitive Rugged Touch Panels
0.3 mm CS Top Glass Surface
Low Diffuse Reflectance
Sunlight Readable
High Operation Temperature
Customization Available

ITO or Micro Mesh EMl Shield

Surface Resistance 0.2~20 ohms/sq
Index Matching ITO coating
High Transmission
Low Reflection, MIL-L-87562A
Blackened Mesh Wire width ~20 µm
High EMI Shielding Efficiency, MIL-STD-461E

Glass and Plastic Heaters

Glass or Plastic Substrate for Heater
Transparent Conductive ITO Coating
Durable Wire Soldering and Fast Heating Up
Low Reflection Integration Technology
Wire to Wire Resistance 10~20 ohms or as Spec'ed

DHA Stack Bonding Services

Patented Air-Gap Tape Bond or Optical Bonding for Rugged Touch, EMI, NVIS LCD with Heater
Total Reflection Control by Polarizing Light Path
Index Matching Optical Bond
Epoxy Based Adhesives
No Leaking for More Than 10 Years

APPLICATIONS

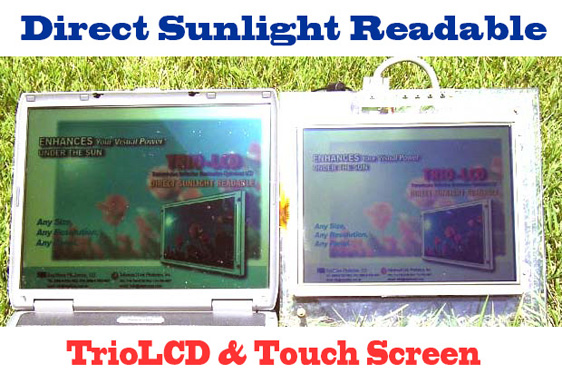

RayShine Photonics Corp(RSP) sunlight readable NVIS LCDs are high contrast ratio and sunlight readable with high brightness >5,000 nits. These LCDs may be designed and easily integrated with other functionalities such as rugged touch panels, EMI windows, heaters, and NVIS LEDs to form display head assemblies (DHAs) ranging from 2.5” to 65” sizes. These DHAs are lightweight, power efficient, very rugged, and used for applications in environments with the harshest conditions, such as avionics, marines, land vehicle transportation, military / law enforcement mobile devices, outdoor signage / kiosks, and personal devices. Each NVIS display can be paired with a custom NVIS filter and EMI shielding products such as ITO coated or micro mesh windows in one assembly.
